BC Racing BR Series Coilovers 2022+ WRX

5x114 5x114x VB VBWRX

b_code, bolt

  • BC Racing's BR coilovers are a perfect mix for street driving and road course duty. BR model coilovers have easily accessible adjustment knobs for fine tuning your compression and rebound and separately adjustable ride height, having a performance coilover system couldn't be any easier. All BC coilover systems include pillow ball mounts to provide the most feedback possible from your suspension and to sharpen your steering response.


    • Mono-tube shock design
    • 30 levels of damping force

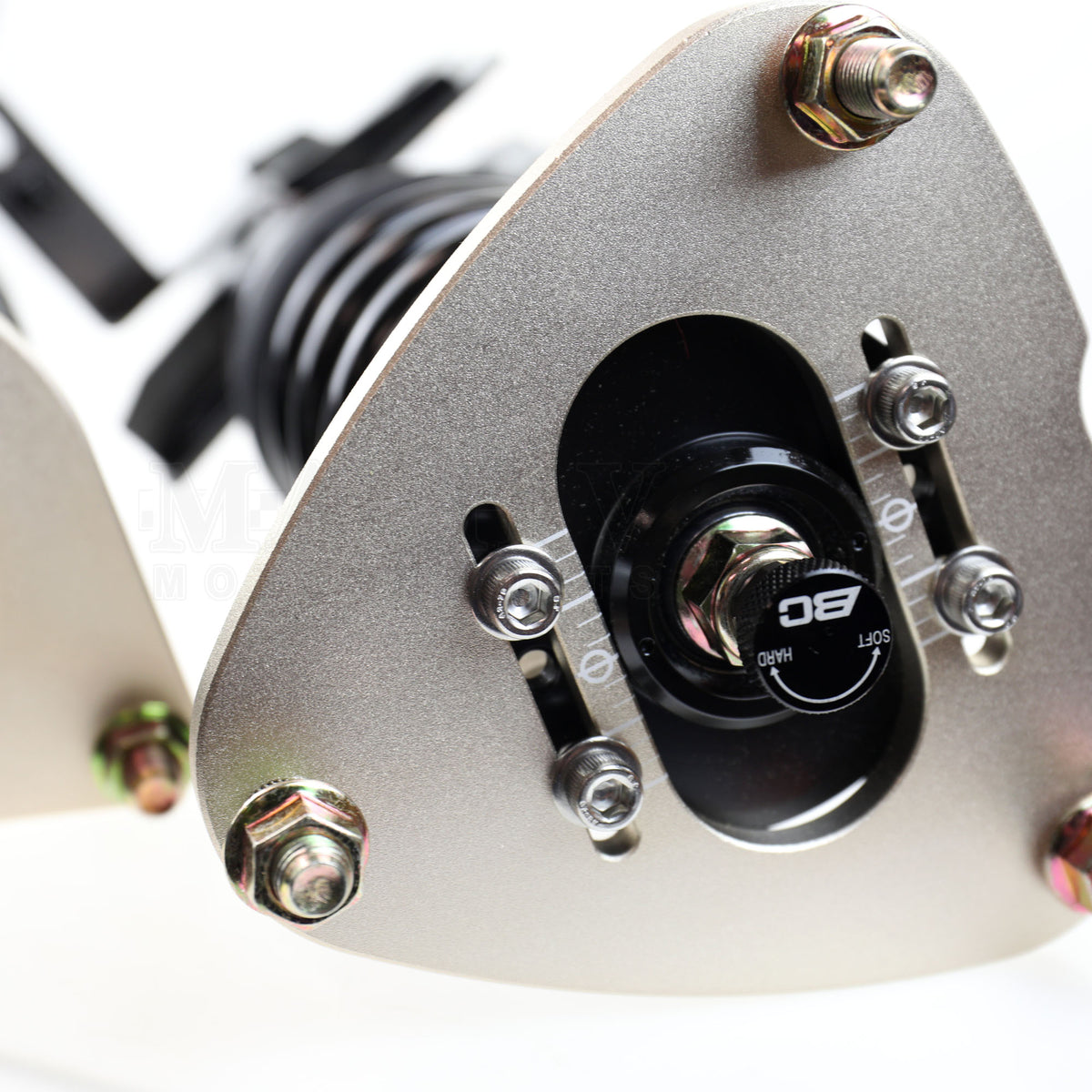

    • adjustment Pillow ball mounts
    • Separate height adjustability
    • One year Warranty
    • Rebuildable

      Technical :

      • Spring rates 8 kg/mm front, 8kg/mm rear
      • Lowers approximately 1" to 2.5" compared to stock suspension
      • Coilovers use 46mm pistons and 53mm shock housings.
      • Valves are constructed of special spring steel, which outperforms stainless steels and produces longer valve life.
      • Valve stacks use a patented deflective system to provide more precise control.
      • Patented concave lower locking ring, to prevent unseating
      • Springs are made of SAE9254 high strength, durable steel. Compression tested at over 500,000 times with less than 5% deformation
      • T6061 Aluminum utilized in spring locks and seats for high strength and lightweight
      • Iron lower brackets on MacPherson struts to ensure rigidity
      • Piston rods are constructed of highly polished steel to lengthen oil seal life and prevent leaking
      • High pressure inner rod guide seals ensure a perfect fit for consistent fade resistant damping and long shock life.
      • 2 step coating process utilizing nickel and chromium plating to prevent corrosion
      • Custom front sway bar end links are included.

      Current status: In stock!

      Fits all 2022+ Subaru WRX.

    • SKU#: 13374

      Shipping Weight: 59.0 lb

      Supplier: BC Racing

      Category: Coilovers
