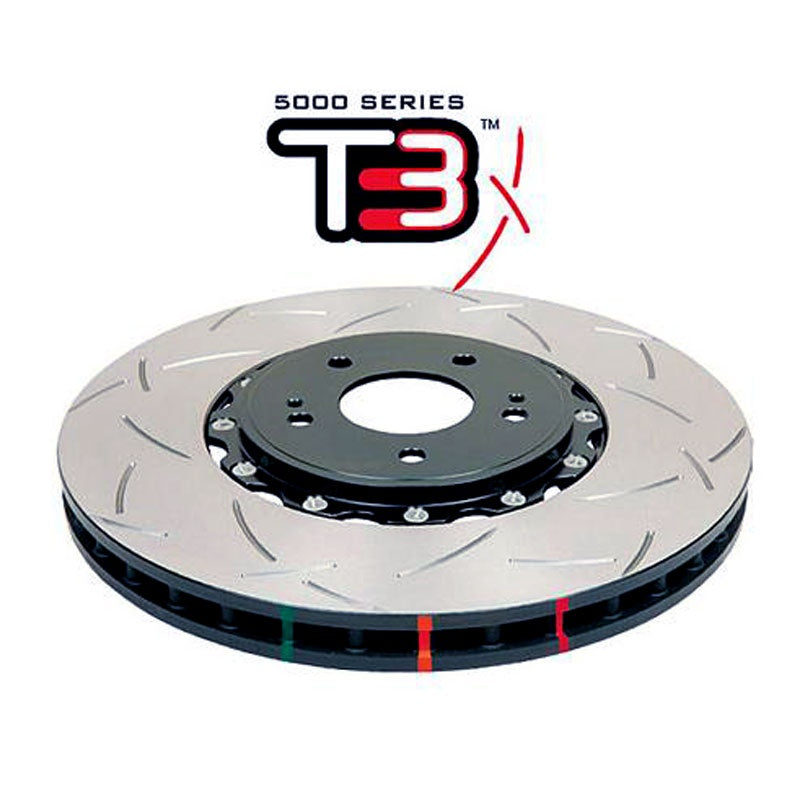

DBA 5000 Series Front Rotors 2004-2017 STI

  • The DBA 5000 series is a direct replacement two-piece disc brake rotor, designed for drivers seeking performance braking. The DBA 5000 series disc rotors consists of two main components: the aluminum center hat and the cast iron disc rotor. These two components are bolted together with NAS (National Aerospace Standard) bolts and lock nuts, hence the term 'two-piece' rotor.

    The main advantage of a two-piece rotor (with aluminum hat), is the ability to allow the cast-iron disc rotor to expand and contract uniformly as the temperature rises and falls during brake application. The benefits of this is minimal distortion and warping of the cast-iron disc rotor.

    The aluminum mounting center hat is made from super-light 6061-T6 Aluminium material, as used in aircraft structural design. The thermal conductivity and high strength of hat allows it to handle large temperature changes.

    All DBA T3 5000 series rotors are slotted; slotting limits the possibility of glazing your brake pads and allows better 'pad-bite' under extreme braking conditions. Slotting constantly improved the disc pad friction face by wiping away the impurities and resins in the friction material.

    Each rotor is 19.0 lbs.

    Set of two front rotors. (Sorry, DBA does not make a matching 5000-series rear rotor.)

    Fits all 2004-2017 Subaru WRX STI. Does NOT fit 2018+ STI.

  • SKU#: 04920

    Shipping Weight: 45.0 lb

    Supplier: DBA

    Category: Brake Rotors
