Girodisc Two-Piece Floating Rotors 2008-2014 WRX STI

6MT EJ25 GD GR GV post-facelift pre-facelift

b_code, e_family, trans

Front or Rear

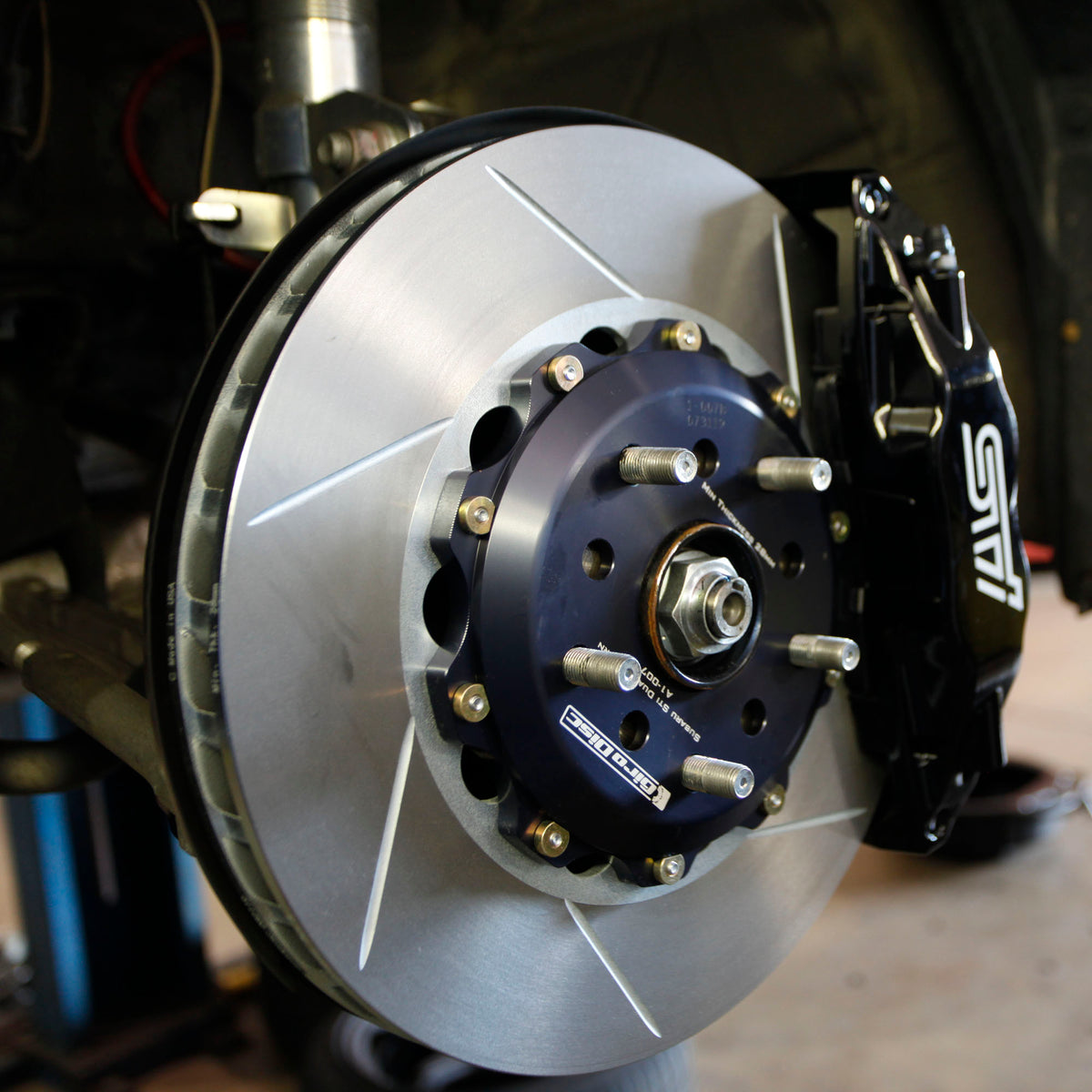

  • The Girodisc system is a direct replacement for the OE disc. The disc will bolt directly to the car and work with OE calipers perfectly. By upgrading your brakes with lightweight high performance replacements as opposed to a big brake kit, your factory bias is maintained as well as your ABS efficiency. The Girodisc front rotors are approx 16.5lbs vs. 20.5lbs for the stock units. This reduction in rotational and unsprung weight allows for quicker acceleration and suspension response.

    The central hat section of the Girodisc rotor is made from strictly U.S. sourced 6061-T6 aircraft specification aluminum.  The disc is made from a proprietary cast iron, poured in the USA and machined from start to finish in house at Girodisc.  The rotor utilizes a curved vane design, developed in racing to act as a centrifugal pump to force cooling air through the disc.

    The rotor and hat have a floating mount system, which utilizes 8 or 10 high strength alloy steel drive pins, manufactured by Girodisc in the USA to their own specifications and cadmium plated for a long lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. The pins are secured by grade 12 cap screws with hardened washers. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self center between the pads.

    Rear fitment requires modification of rear brake pads, pictured here

    Once the Girodisc system is in place, simply replace the cast iron rotor when needed.

    Fits all 2004-2014 Subaru WRX STI.


  • SKU#: 09954FR, 09957RE

    Shipping Weight: 40.0 lb

    Supplier: Girodisc

    Category: Brake Rotors
