GiroDisc Brake Pad Heat Shields 2015-2017 STI

6MT EJ25 pre-facelift VASTI

b_code, e_family, trans

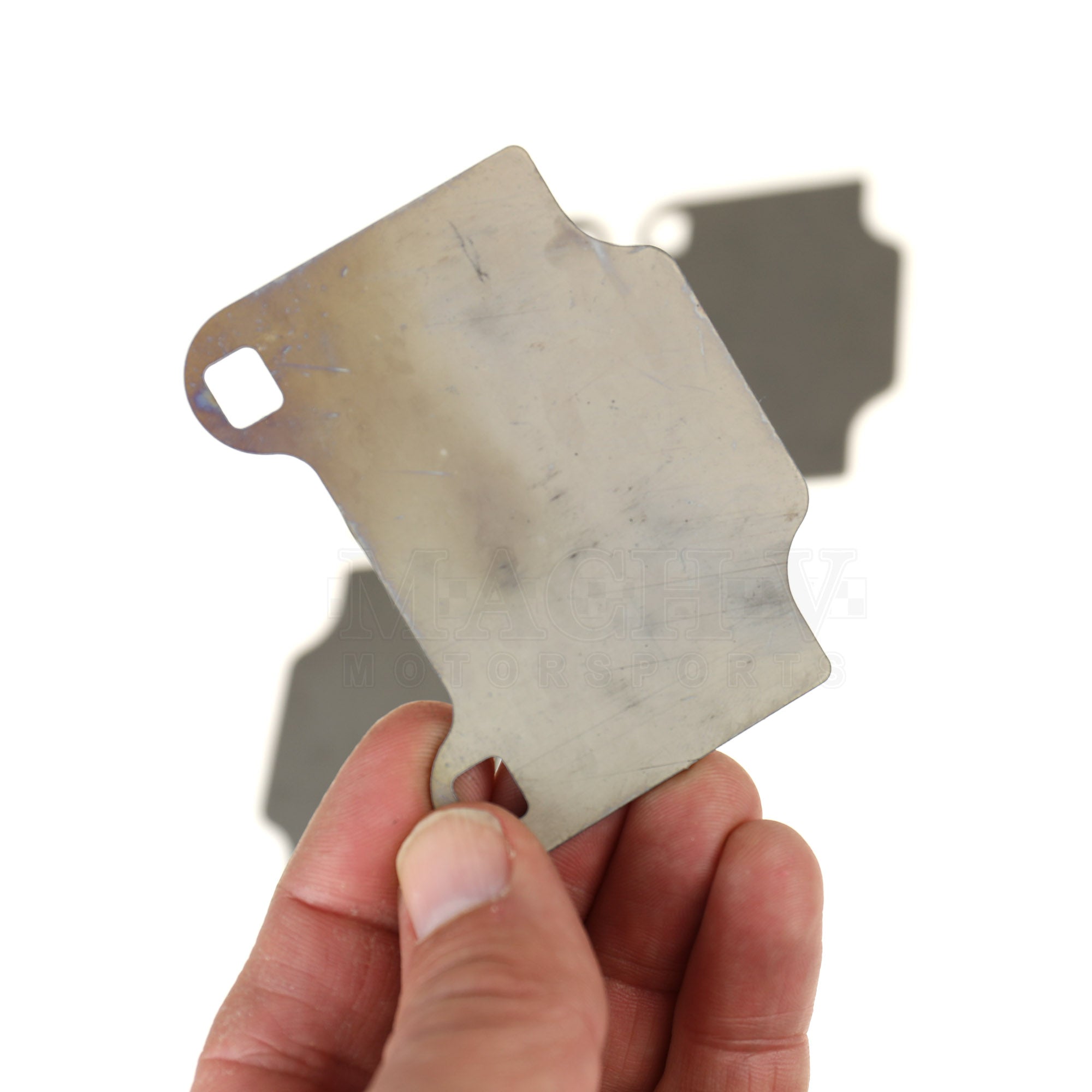

  • The problem of brake fluid boiling is simply traced to heat transferring from the rotors and pads directly into the fluid through the caliper pistons. When brake fluid boils, it releases air that is normally part of the molecular structure of the fluid. This air is compressible of course, and the brake pedal goes to the floor instead of moving the caliper pistons. Production cars tend to suffer from this on track days more as they don't usually have the extensive cooling duct and exotic brake materials as true racing cars. True racing only brake calipers generally come with titanium caliper pistons for one reason. Titanium as a material, has low thermal conductivity. This means that it is very bad at transferring heat. Which is good if you are trying to keep your fluid cool. The Girodisc solution to help prevent fluid boiling is to use a thin titanium shim placed between the pad back and the pistons, to keep the braking heat from transferring into the pistons and fluid. Here is a comparison of materials and their relative thermal conductivity ratings: Titanium 6AL-4V 6.7 W/mk Steel 52 W/mk Aluminum 130 W/mk You can see that Titanium will transfer far less heat than steel and especially aluminum. For cars that are going to see hard or multiple track days, these shims are cheap protection from loosing the pedal due to boiling at the wrong time and making the day very expensive. Water jet cut to exact size, no cutting, grinding, or swearing involved. Price is per axle (four pieces) When comparison shopping, be sure to notice the quality of our components.


    • Substantial reduction in brake overheating problems
    • Ease in bringing brake linings up to temperature
    • Increased braking performance
    • Vibration damping

    Installation notes: The plates install directly behind the brake pads. The plates are only about 1mm thick, but confirm clearance before using the brakes; if there is not enough space for pads to clear the rotor with the plate in place, you will want to wait until the pads are slightly worn, or you will want to polish a little friction material off the face of the pad to have clearance.

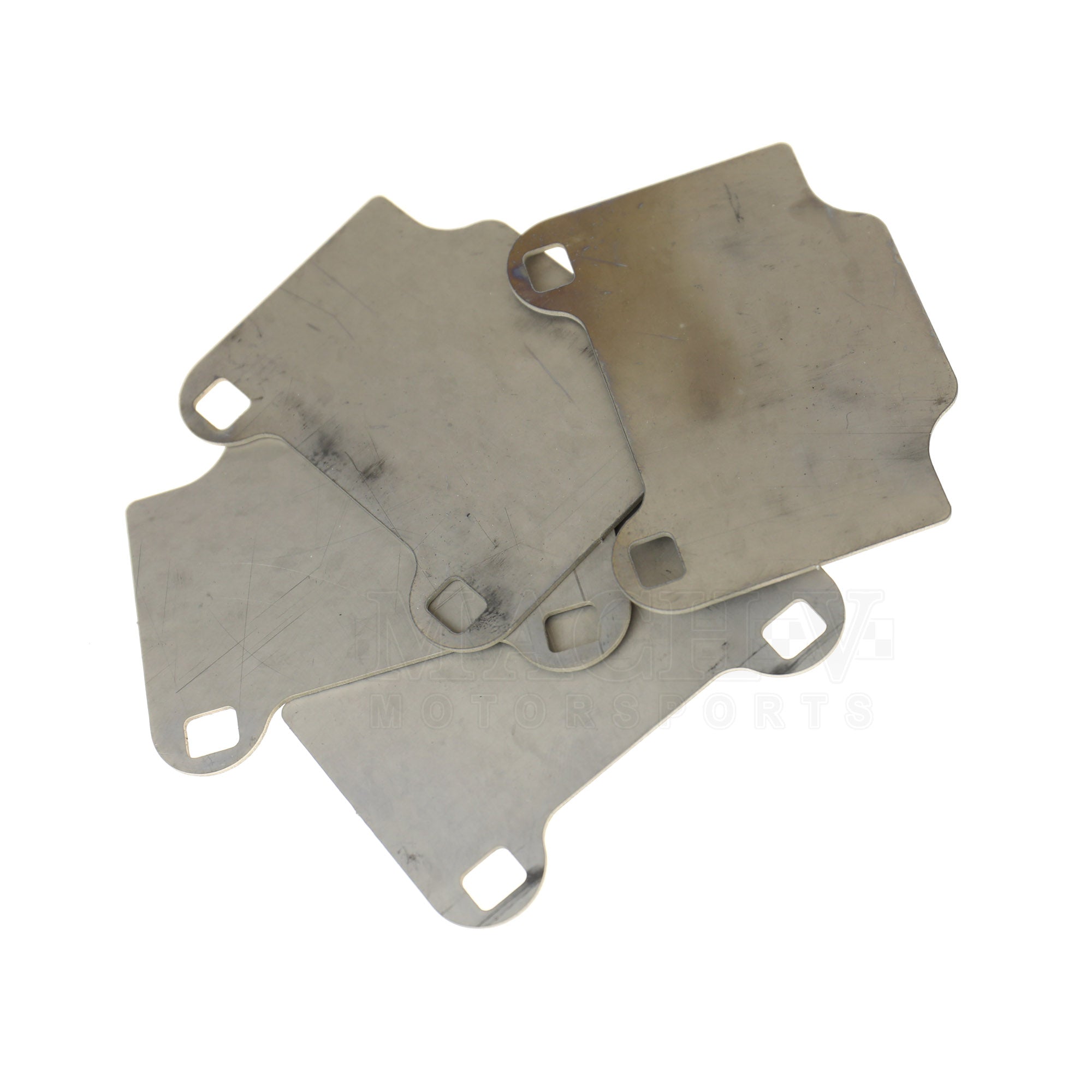

    Sold as a set of four plates, enough for two brake calipers. Select front or rear. Get one of each for a full-car set.

    Fits all 2015-2017 Subaru WRX STI.


  • SKU#: 13932FR, 13932RE

    Shipping Weight: 1.0 lb

    Supplier: Girodisc

    Category: Brake Pads
