The Girodisc system is a direct replacement for the OE disc. The disc will bolt directly to the car and work with OE calipers perfectly. By upgrading your brakes with lightweight high performance replacements as opposed to a big brake kit, your factory bias is maintained as well as your ABS efficiency. The Girodisc front rotors are approx 16.5 pounds each vs. 20.5lbs for the stock units. The rear rotors are 11.45 pounds each compared to. 16.85 for the stock ones. This reduction in rotational and unsprung weight allows for quicker acceleration and suspension response.
The central hat section of the Girodisc rotor is made from strictly U.S. sourced 6061-T6 aircraft specification aluminum. The disc is made from a proprietary cast iron, poured in the USA and machined from start to finish in house at Girodisc. The rotor utilizes a curved vane design, developed in racing to act as a centrifugal pump to force cooling air through the disc.
The rotor and hat have a floating mount system, which utilizes 8 or 10 high strength alloy steel drive pins, manufactured by Girodisc in the USA to their own specifications and cadmium plated for a long lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. The pins are secured by grade 12 cap screws with hardened washers. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self center between the pads.
Rear fitment requires modification of rear brake pads, pictured here
Once the Girodisc system is in place, simply replace the cast iron rotor when needed.

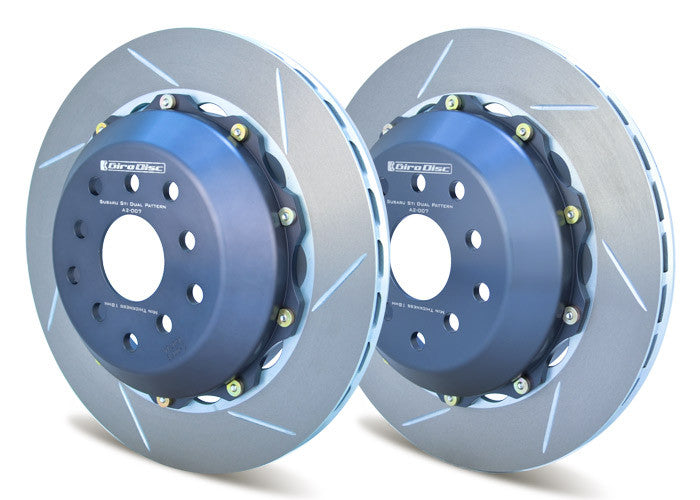

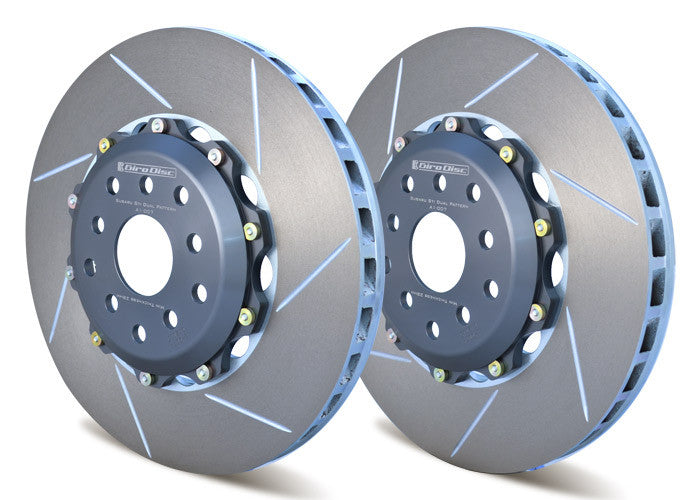

Set of two rotors, left and right. Choose front or rear.
Fits all 2015-2017 Subaru WRX STI. Does NOT fit 2018+ STI.
SKU#: 09954FR, 09957RE
Shipping Weight: 50.0 lb
Category: Brake Rotors
