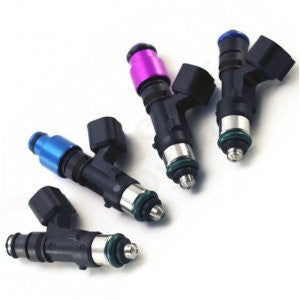

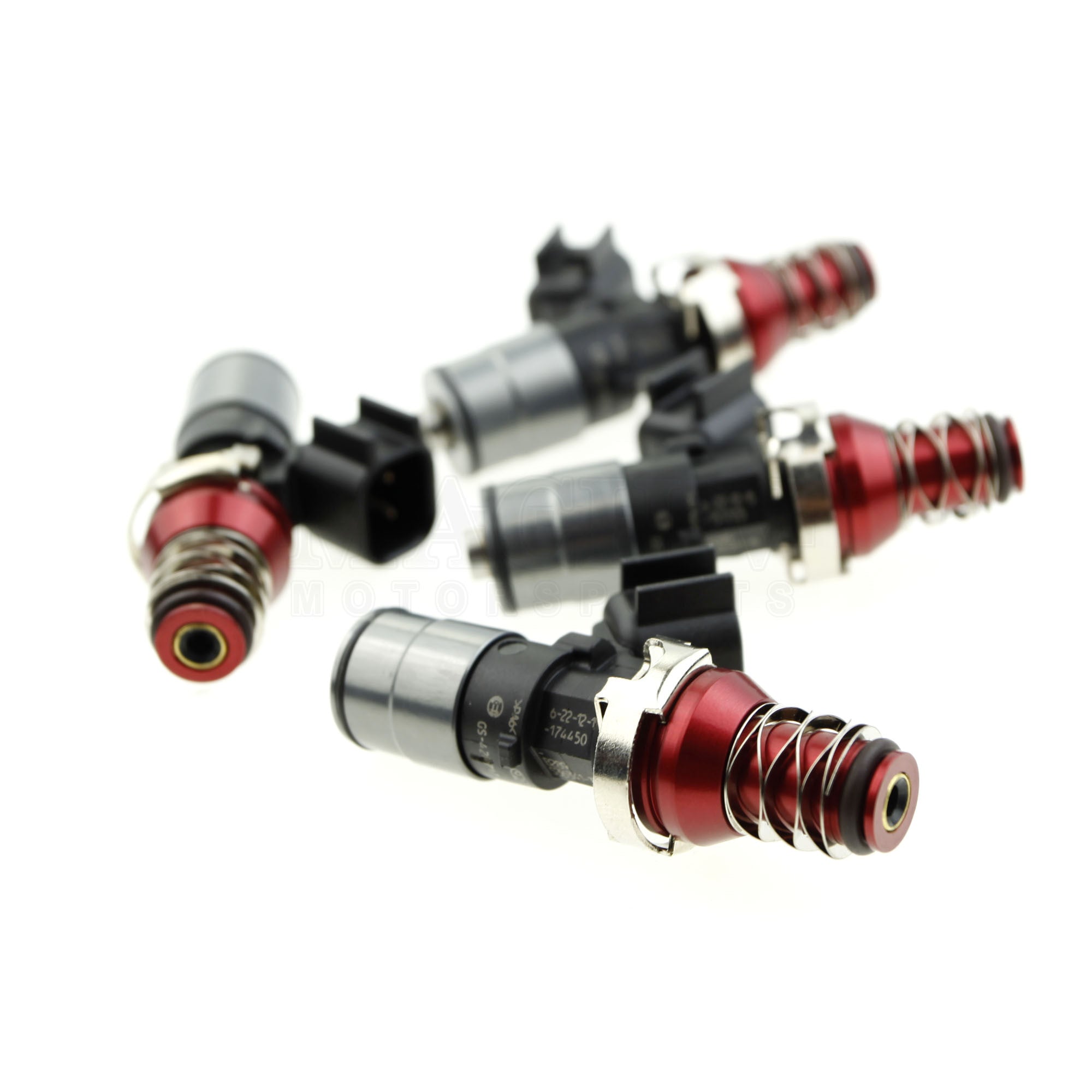

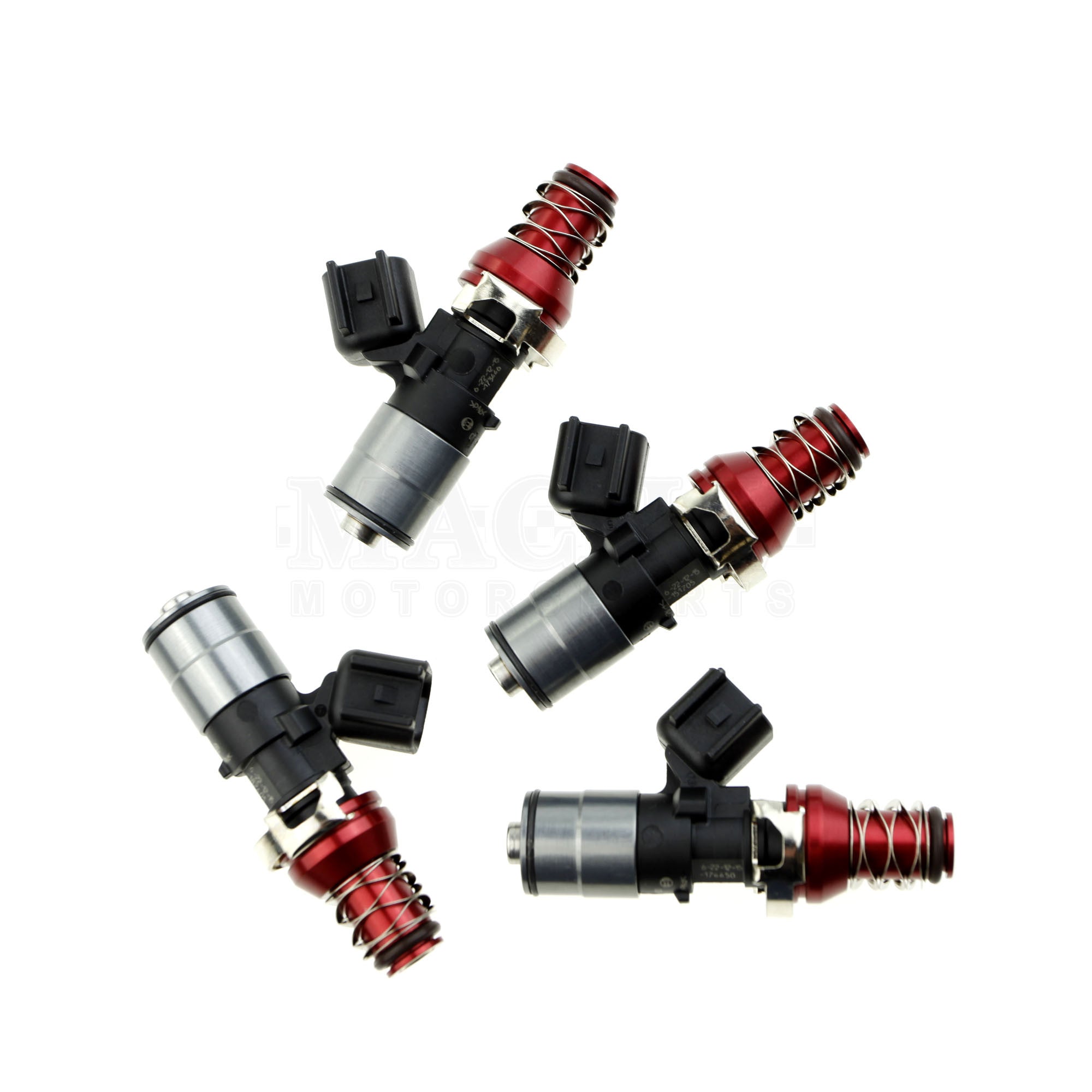

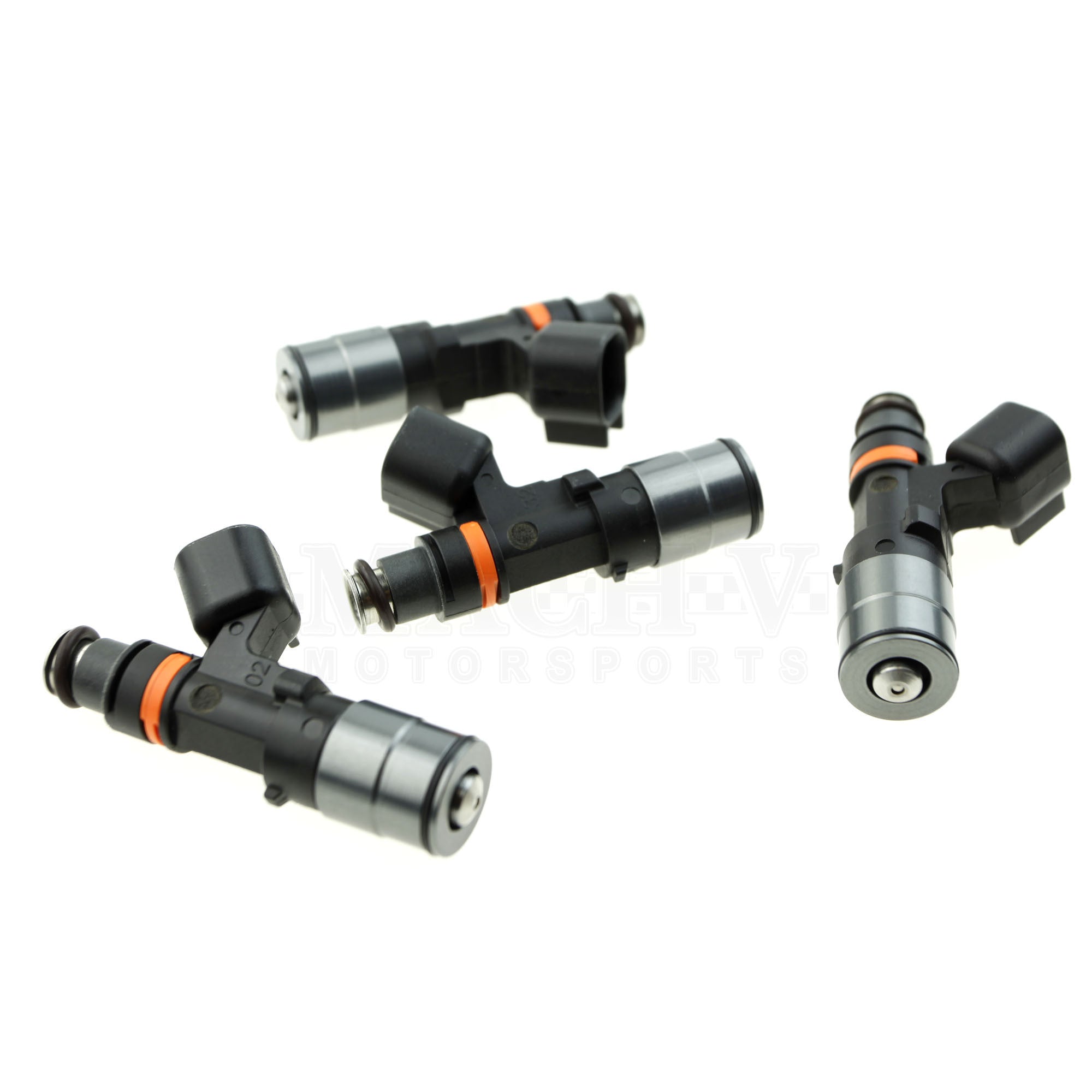

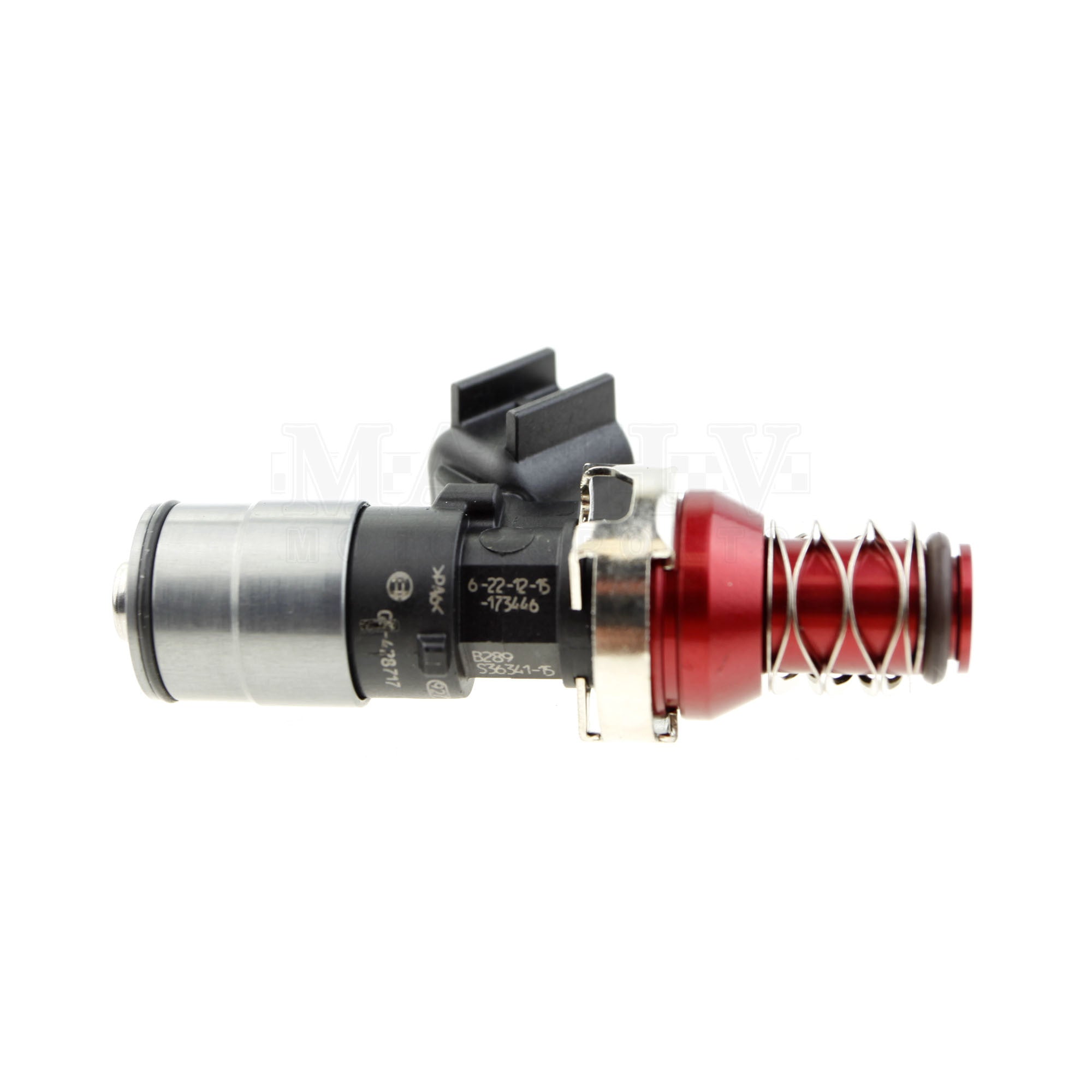

Injector Dynamics Injectors

  • Injector Dynamics is renowned worldwide for manufacturing the highest performing and most tuner preferred fuel injectors available on the market today. Lesser quality fuel injectors are typically flow tested only along a static range; the injector is held open and maximum flow is metered, a method that poorly recreates real world conditions and has zero compensation for dynamic range. Injector Dynamics tests all of their injectors across the entire dynamic pulsewidth range. Once each injector is dynamically tested, a computer matching process optimally batches each injector set to match within 1% dynamic flow rate with an offset variance of +/- 20 microseconds. This tight matching allows the use of high flow rate injectors without sacrificing idle, off idle and cruise quality while ensuring that individual injectors respond properly to atmospheric and voltage compensations from the ECU. All matched sets of Injector Dynamics products include dynamic flow test data including flow and offset values from 8 to 16 volts across the full pressure range in 5psi increments. Each injector set also ships with full dynamic characterization curves with raw flow vs. pulsewiths, offset corrected flow, linearity curves and pressure sensitivity plots. Injector Dynamics is virtually the only injector manufacturer in business today that can provide these types of data to their customers and tuners. Better data equals more consistency and a more accurate performance calibration when tuning your car for big power.

    The 1050cc, 1300cc,1700cc, and 2600cc are ID's X-series injectors, and are fully compatible with E85 as well as normal gasoline.

    Set of four injectors. We HIGHLY RECOMMEND you buy the available wiring harness set; otherwise, you will not be able to plug these directly into your Subaru.

    Fits all TOP FEED injector Subaru motors. These do NOT fit SIDE FEED Subaru cars without a top feed conversion kit.

  • SKU#: 09842C, 09842E, 09842G, 09842D

    Shipping Weight: 3.0 lb

    Supplier: Injector Dynamics

    Category: Fuel injectors, Fuel System
