Mach V 5mm Wheel Spacers

5x100 5x114 5x114x

, bolt

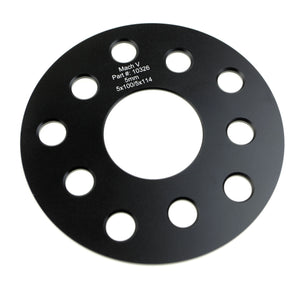

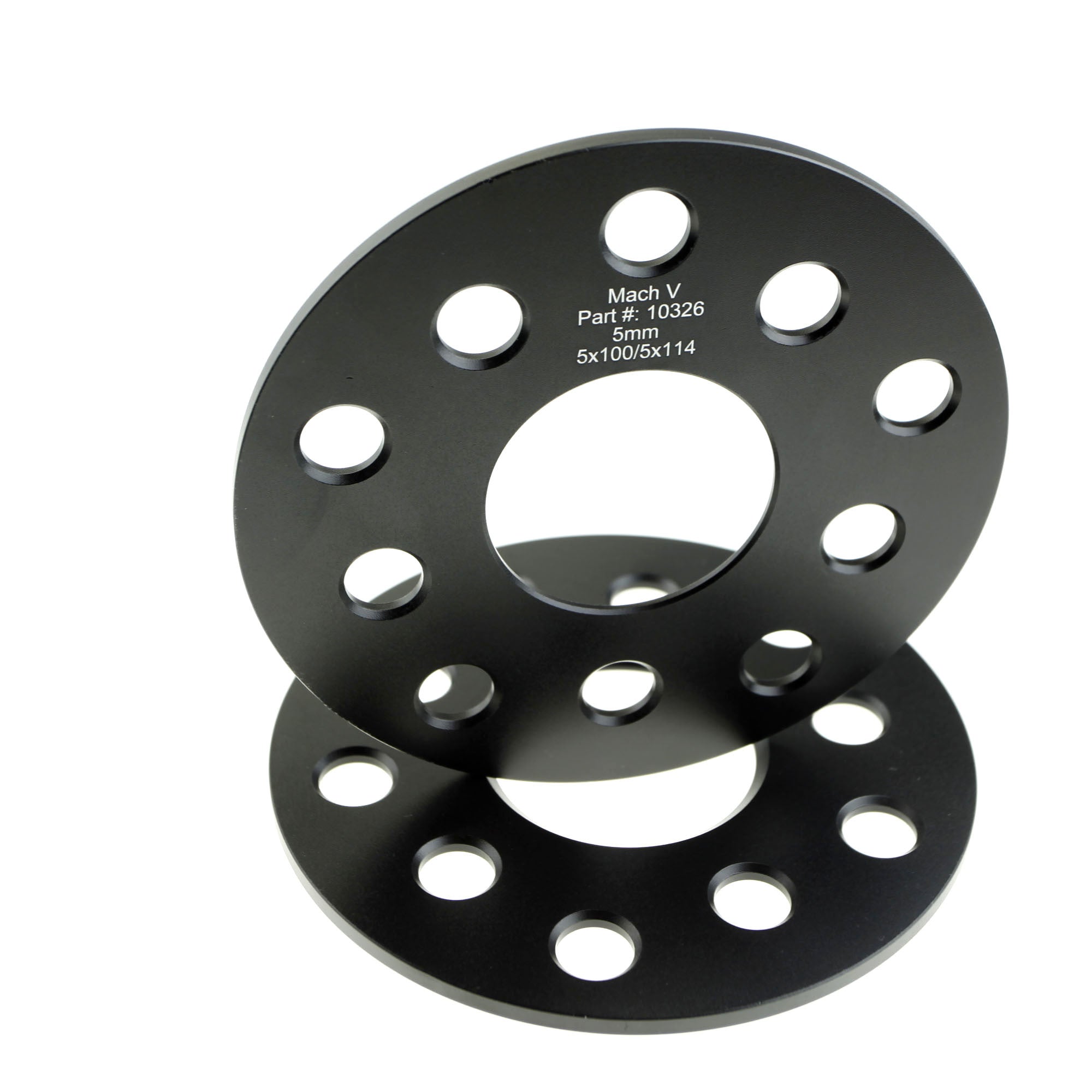

  • We got tired of junky wheel spacers, so we made our own. We built in all the features we missed on other wheel spacers. They are CNC milled, not cast. Of course they are hubcentric for all Subaru cars, and they are drilled for both 5x100 and 5x114 bolt patterns. We built them from 6061 aluminum for strength and corrosion-resistance. We chamfered all the edges, so they are smooth to touch and easy to install and remove. The spacers are black-anodized so they look great and blend in nicely when installed on the car. Finally, we had the description, part number, and thickness laser-etched on the spacer, so if a spacer does ever end up loose in your tool box, you'll know at a glance what it is. These 5mm wheel spacers can be used with stock studs in most cases, but thicker-than-stock wheels or other unusual conditions may mean that's not the case. Use good judgment and always be sure there is adequate thread engagement between the lug nut and stud.

    Measure carefully to ensure there is enough thread engagement left on the stud after installing your wheel spacers. We have not had any trouble on stock WRX and STI cars with stock wheels, but cars can have different thickness brake rotors, and aftermarket wheels (or wheels for or from other Subarus) can also be different thicknesses. Be sure you have enough thread length for proper lug nut engagement. Minimum thread engagement should be 12mm, and more is better.

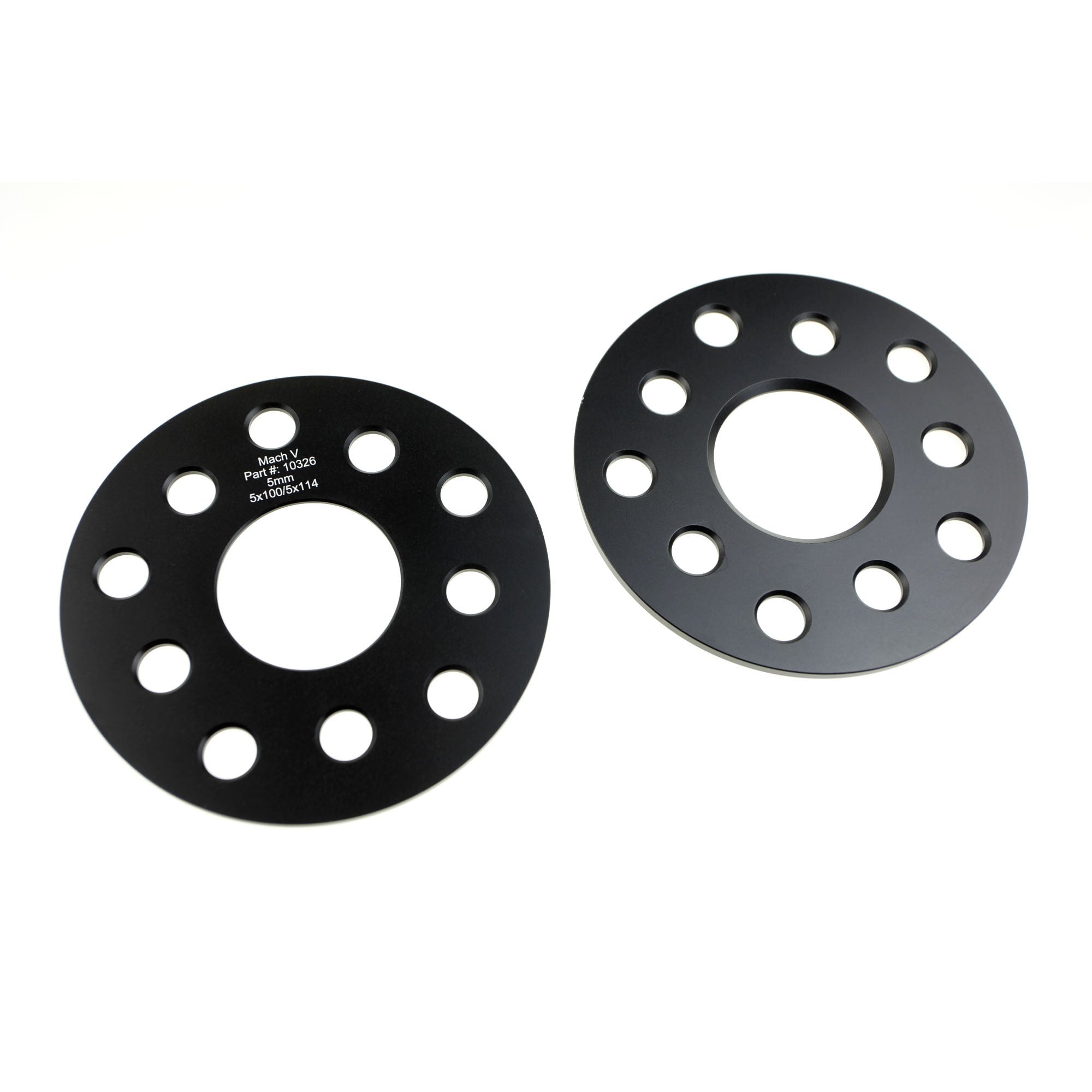

    Set of two wheel spacers. 5mm thick.

    Install notes: The labeled side faces OUT from the car.

    Note: Wheel spacers that have been installed on a car -- even once -- MAY NOT BE RETURNED.  Thank you.

    Note 2: On our most recent batch of these, the engraving was not done correctly, and the "Mach V/Part #/5mm" part was left off. They still work just as well!

  • SKU#: 10326

    Shipping Weight: 1.0 lb

    Supplier: Mach V Motorsports

    Category: Mach V Wheel Spacers, Wheel Accessories
