Radium MPR Fuel Pressure Regulator

20-0100-00 20-0100-01 FPR

b_code, mani_type, i_style

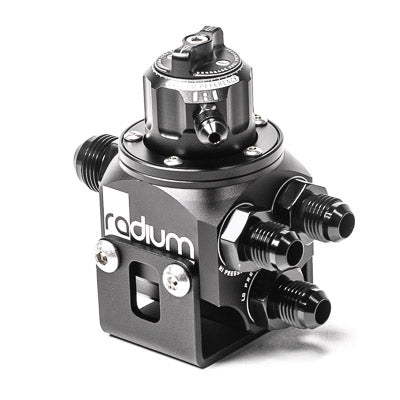

  • The Radium Multi Pump Regulator (MPR) is manufactured in the USA and is the ultimate solution for simple or complex high-flow fuel systems. Its unique port configuration make it ideal for combining multiple fuel pumps into a single feed line or vice versa. The MPR can be plumbed many different ways to suit most any installation; traditional flow-through or dead-end systems. Because of this flexibility, it is also perfect for Radium fuel surge tanks by eliminating the need for an extra "Y" fitting.

    The lower two opposing return ports are unique in that they flow parallel with the pressure ports eliminating the need for elbow fittings. Furthermore, the MPR is the only regulator on the market that can be floor mounted. Alternatively, wall mounting can be accomplished by not using the included mounting bracket and simply mounting using the holes that pass through the body.

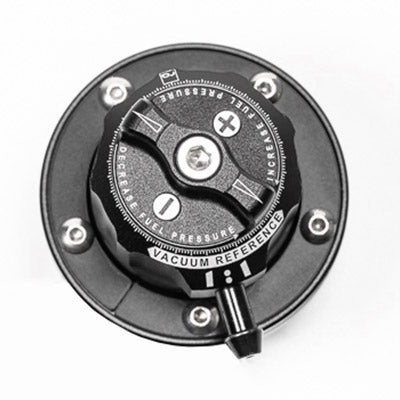

    Fuel pressure is dialed in using the preload set screw on top. The 1:1 vacuum reference high flow design has been tested to regulate over 1,400 liters per hour (see MORE DETAILS tab). Furthermore, with the addition of interchangeable return orifices, the MPR can be used in ANY horsepower output EFI system imaginable and is compatible with all gasoline and ethanol blends of fuel.

    Note that this regulator is intended to be used with a full aftermarket fuel system using AN fittings and lines. This regulator is in no way compatible with a stock Subaru fuel system. For this reason this website's fitment indicator will NOT indicate it will fit on your car -- because unless your fuel system is totally custom, it won't.

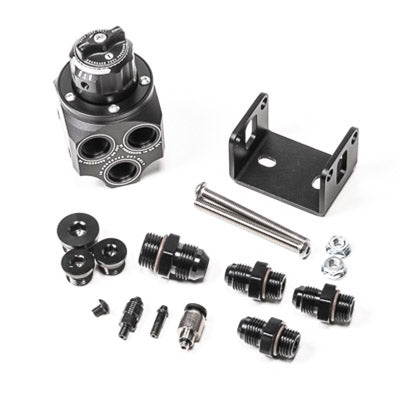

    • Multi-pump regulator
    • Mounting bracket with hardware
    • Three interchangeable orifices
    • 9/16"-18 (-6AN) O-ring port plug (x2)
    • 3/4"-16 (-8AN) O-ring port plug (x1)
    • 6AN male adapter fitting (x3)
    • 8AN male adapter fitting (x1)

     Black in color.

  • SKU#: 11106

    Shipping Weight: 3.0 lb

    Supplier: Radium Engineering

    Category: Fuel System
