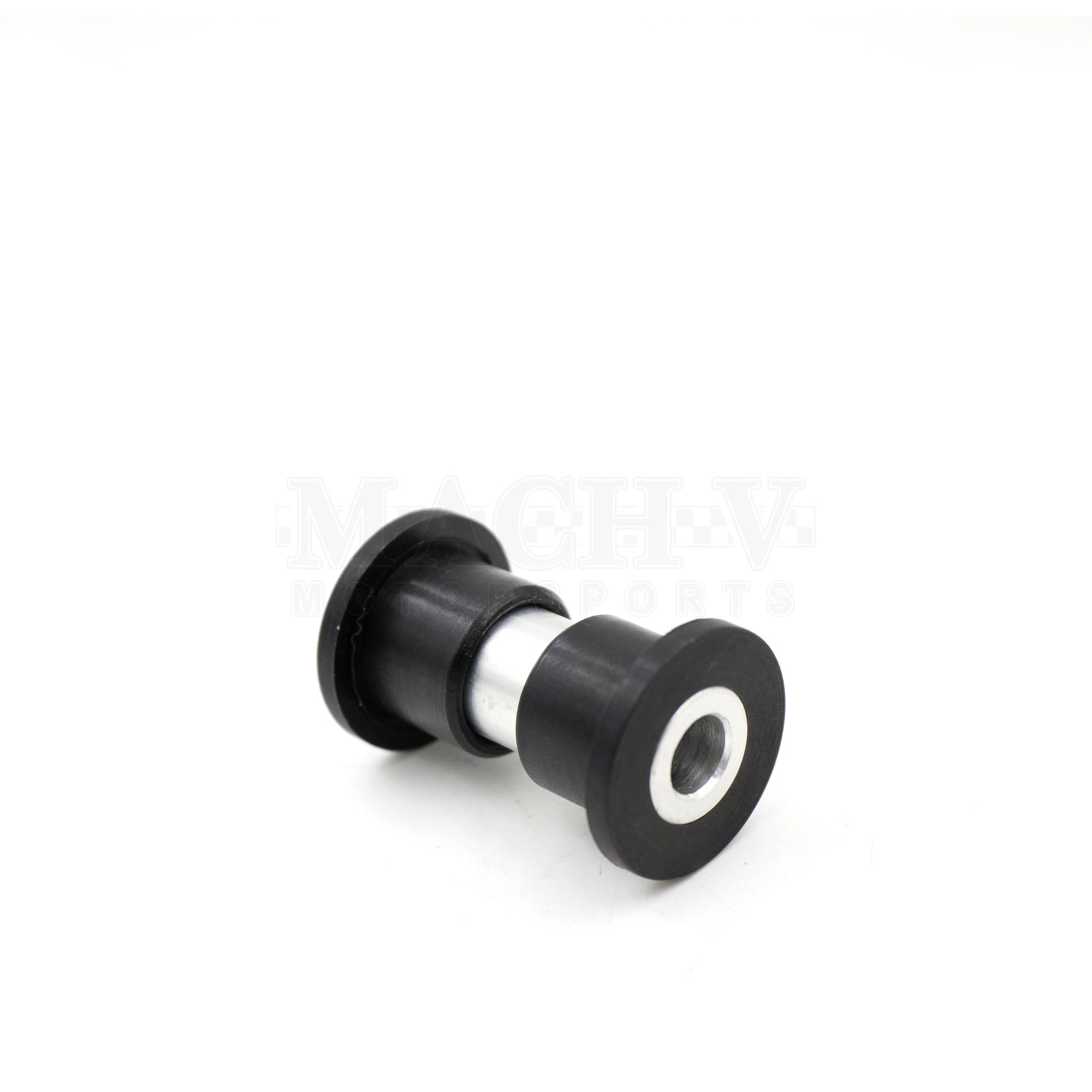

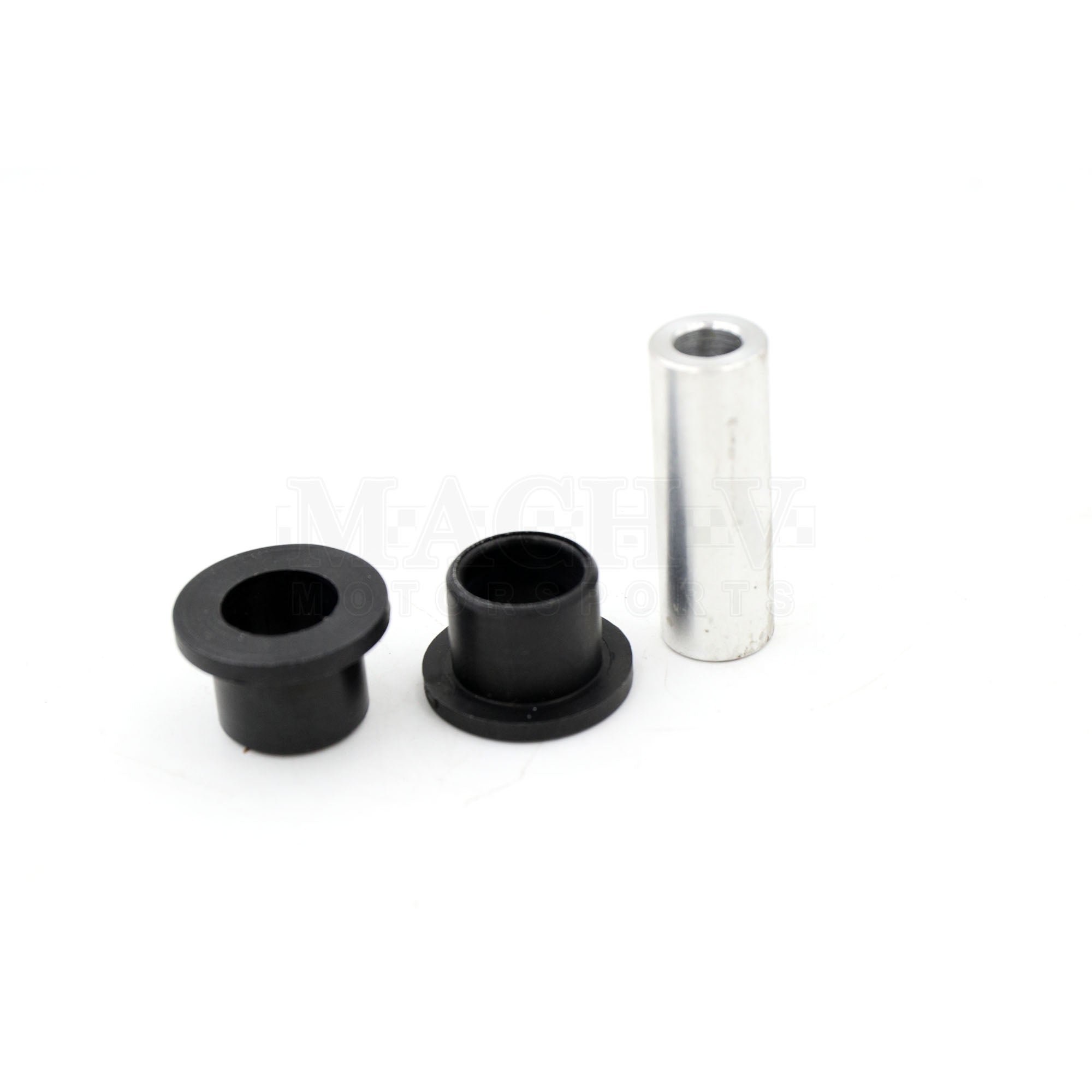

Turn In Concepts 6MT Lever Pivot Bushings


b_code, trans

  • It's another amazing product from Turn In Concepts. These are the bushings that go in the actual shift lever. Not down under the car, but inside the car, under the leatherette shift boot. In other words you can change these out in just a few minutes from inside the car.

    These TiC bushings are a tight fit. This means TAKE YOUR TIME, and DO NOT USE VISE GRIPS OR CHANNEL LOCKS. If you need to use something, use a C-clamp with smooth clamping surfaces. Above all else TAKE YOUR TIME. Here's a quick breakdown of how it works:

    1. Unscrew shift knob, and unsnap the shifter boot
    2. Remove the trim to access the shifter under the boot
    3. Using two 12mm wrenches, undo the bolt and remove.
    4. Push out the old stock sleeve, and pull out the old bushings.
    5. Grease the inside of the pivot tube and press the new bushings in - it's a tight fit to give it some effort. Make sure the bushings are going in straight!!
    6. Grease the insides of the bushings and press the new metal sleeve in. Make sure the sleeve is going in straight, and take your time!
    7. Grease faces of bushings where they will contact the control rod clevis. Slide into clevis - it'll be a tight fit
    8. Insert bolt and tighten to 8 ft-lbs.

    To review - USE GREASE and about 8 ft-lbs of torque. Drive the car around and work the gears a little bit to get the bushings comfy in their new home, and enjoy.

    ATTENTION 2008 STI owners! If you are going to use the Kartboy or any of the other aftermarket shift levers you need this version of the pivot bushings. If you are going to keep the STOCK lever then you need the 5MT wide pivot bushings! This is due to a change that Subaru made for 2008.

    Fits all 2004-2021 Subaru WRX STI.

  • SKU#: 084346MT

    Shipping Weight: 1.0 lb

    Supplier: TiC

    Category: Short Shifters and Shifter Bushings
