Vorshlag Camber Plates for Stock-Style Struts BRZ/FR-S/86

post-facelift pre-facelift ZC ZN

b_code, e_family

  • Easily adjust front camber settings track side with Vorshlag front camber plates for the Subaru BRZ/Scion FR-S/Toyota GT86 cars (2013+). Over-sized spherical bearings and alloy steel bearing holders are designed to withstand the rigors of street and track abuse as well as provide minimal stack-up height and maximum suspension travel. All components are plated for maximum corrosion resistance and long life. These are the strongest camber plates made for a Subaru. We have also added +1.0 positive caster into these plates compared to the OEM upper strut position (.450" displacement rearward) when used in this chassis.

    Previously Vorshlag camber plates were only available for coilovers, but the company was able to design a perch allowing you to use an OEM style strut with the stock springs or lowering springs. These custom spring perches incorporate a sealed single row axial bearing for extremely low rotational friction and a lifetime of trouble free use, and remove rotational loads from the spherical bearing. Vorshlag camber plates are designed to be compatible with all common strut types. This perch also allows you to retain the OEM rubber spring isolator.

    • Compatible with OEM sized springs and all struts.
    • Installs with basic hand tools, no chassis modifications required.
    • Plates are designed to fit the Subaru BRZ/Scion FR-S/Toyota GT86.
    • Camber is easily adjustable at the track from the engine compartment with simple hand tools. No need to reach inside the wheel well with a wrench!
    • Potential negative camber gain is considerable - we were able to get to -3 camber on the front of our Subaru BRZ using our development OEM spring perches. Lowering the ride height with coilovers will allow for even more static negative camber.
    • The design adds 1.0 positive caster.
    • The spherical bearing used in Vorshlag camber plates is the largest used in any Subaru camber plate. The result has much better durability and wear characteristics than the undersized bearings used in some competitors' plates.
    • Designed using .400" aluminum alloy. The high strength of the aluminum allows these to have the minimum stack-up height and maximum suspension bump travel. More than an inch more strut travel than some of our competitors!
    • 100% CNC machined, anodized aluminum alloy construction
    • All components plated for maximum corrosion resistance and long life.
    • Engraved with Vorshlag logo, model, and side/front orientation.
    • The included pair of Vorshlag aluminum upper perches include sealed Vorshlag Radial Bearings for ultra low friction steering resistance, isolating strut shaft rotation from the spherical bearing for long life.

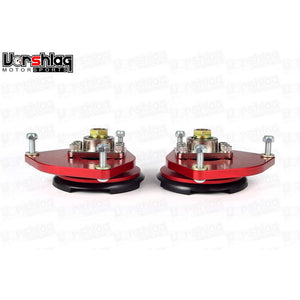

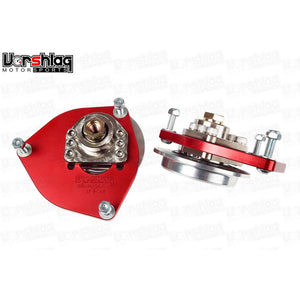

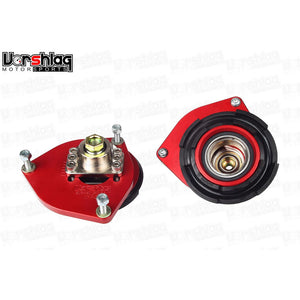

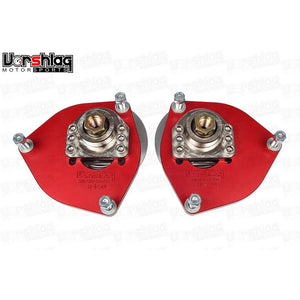

    Set of two front camber plate upper strut mounts.

    Fits all Subaru BRZ/Scion FR-S/Toyota 86 equipped with stock-style struts and springs. If you are looking for plates to use with coilovers, find those HERE.

  • SKU#: 11424

    Shipping Weight: 8.0 lb

    Supplier: Vorshlag Motorsports

    Category: Other Suspension
